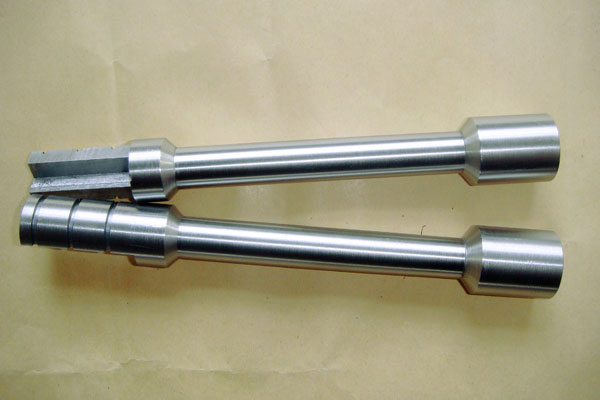

Molybdenum seed holder
Molybdenum seed holder mainly used for sapphire crystal growthing furnace,it’s contact with seed and rod,it between crystal and pulling rod, Before growing. need put seed (small piece of sapphire) in the seed holder and bind WRe wire.melt the raw materials and put down seed to it.
Molybdenum seed holder mainly used for sapphire crystal growthing furnace,it’s contact with seed and rod,it between crystal and pulling rod, Before growing. need put seed (small piece of sapphire) in the seed holder and bind WRe wire.melt the raw materials and put down seed to it.
Size: Dia13*195mm
Dia13*165mm
Dia16*195mm
Or as per customer's drawing.
Grade: Mo1,TZM,Mo-La
Purity: 99.95%,99.97%
Surface: polised
Element | Ni | Mg | Fe | Pb | Al | Bi | Si | Ca | P | Cu |
Concentration(%) | 0.0006 | 0.0006 | 0.001 | 0.0006 | 0.003 | 0.0006 | 0.003 | 0.0006 | 0.001 | 0.0006 |
Element | C | O | Sb | |||||||
Concentration(%) | 0.001 | 0.005 | 0.0006 | |||||||
Purity(Metallic Base) Mo≥99.95% | ||||||||||
| ElementNiMgFePbAlBiSiCdPConcentration(%)0.0014<0.00010.0047<0.00010.0002<0.0001<0.001<0.001<0.001ElementCNSbSnCuConcentration(%)0.00210.03<0.0001<0.0001<0.0005Purity(Metallic Base) Mo≥99.97 | ||||||||||
